| Brand Name : | Lu Young |
| Model Number : | vmc1160 |
| Certification : | CE,ISO |
| Price : | $29000-$45000 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100sets per month |
| Delivery Time : | 30 days |
vmc850 vmc1160 hot sell 3/4/5 axis metal vertical cnc milling machine with Taiwan 4 axis
Product introduce:
vmc850 vmc1160 hot sell 3/4/5 axis metal vertical cnc milling machine with Taiwan 4 axis is composed of mechanical equipment and numerical control system. Is an automated machine that is suitable for efficient machining of complex parts. CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable.
Specification of vmc850 vmc1160 hot sell 3/4/5 axis metal vertical cnc milling machine with Taiwan 4 axis
| Item | VMC1160 |
| Size of worktable(length×width)mm | 1200×600 |
| T slot (mm) | 5-18×120 |
| Max loading weight on worktable(KG) | 1000 |
| X-Axis travel(mm) | 1100 |
| Y-Axis travel(mm) | 600 |
| Z-Axis travel(mm) | 600 |
| Distance between spindle nose and table(mm) | 130-780 |
| Distance between spindle center and column (mm) | 650 |
| Spindle taper | BT40 |
| Max. spindle speed( rpm) | 8000/10000/12000 |
| Spindle motor power(Kw) | 11/15 |
| Rapid feeding speed: X,Y,Z axis (m/min) | 24/24/24 liner guideway |
| Fast cutting speed (m /min) | 10 |
| Positional accuracy (mm) | ±0.005 |
| Repeat positional accuracy (mm) | ±0.003 |
| Auto Tool changer type | 24 arm type auto tool changer |
| Max. tool length (mm) | 300 |
| Max. Tool diameter | Φ80(adjacent tool)/φ150(not adjacent tool) |
| Max.tool weight(KG) | 8 |
| Tool changing time(tool-to-tool)sec | 2.5 |
| Air pressure(Mpa) | 0.6 |
| Machine weight(KG) | 7200 |
| Overall size(mm) | 3340*2800*2700 |
| Voltage | 380v 3 phase |
Product feature:
Production of vmc850 vmc1160 hot sell 3/4/5 axis metal vertical cnc milling machine with Taiwan 4 axis:
1. Casting: HT300 resin sand wear-resistant castings have high density and good wear resistance! The saddle adopts a double-layer casting structure, and the large A-shaped column structure shows high rigidity cutting ability.
2.Spindle: Standard is high speed BT40-150 belt driven Taiwan spindle---8000RPM; Optional is 10000/12000/15000 rpm .simple and compact structure, high efficiency, low noise, low vibration , high precision,and good surface finishing.
3.Screw:Standard is hardened guide way,optional is Taiwan Hiwin linear guide way.The guide screw adopts the imported JIS-C3 grinding grade pre-stretched nut screw to eliminate the backlash, after heat treatment, it has good rigidity, wear resistance, and guarantees the high precision of the operation.
4.Auto tool changer: Taiwan hat type (16 knives) tool magazine. Advantages: low wear, long life, easy adjustment, and low failure rate.Optional configuration is Taiwan 20/24 disc type Auto tool changer.

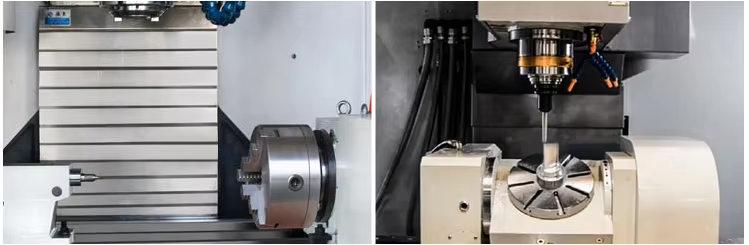

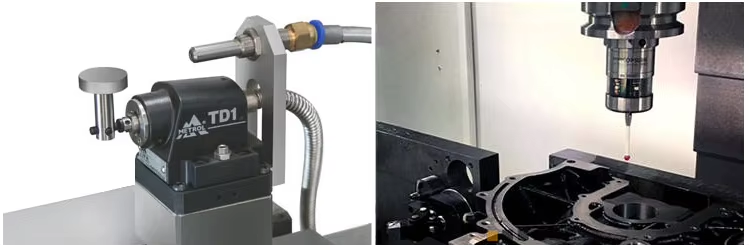

optional configuration of vmc850 vmc1160 hot sell 3/4/5 axis metal vertical cnc milling machine with Taiwan 4 axis:
1.Does the application of vmc850 vmc1160 hot sell 3/4/5 axis metal vertical cnc milling machine with Taiwan 4 axis can be customized?
Of course, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet your needs
2.How long is the warranty period of the vmc850 vmc1160 hot sell 3/4/5 axis metal vertical cnc milling machine with Taiwan 4 axis ?
Warranty period is one year, if parts damage within one year, we will send free of charge. Free online training or factory
training to ensure that you can use our products properly. We can offer overseas paid installation, commissioning service.
3.What time is your work time?
We work online 24 hours a day, offer quotes and technical support at any time.
|
|
