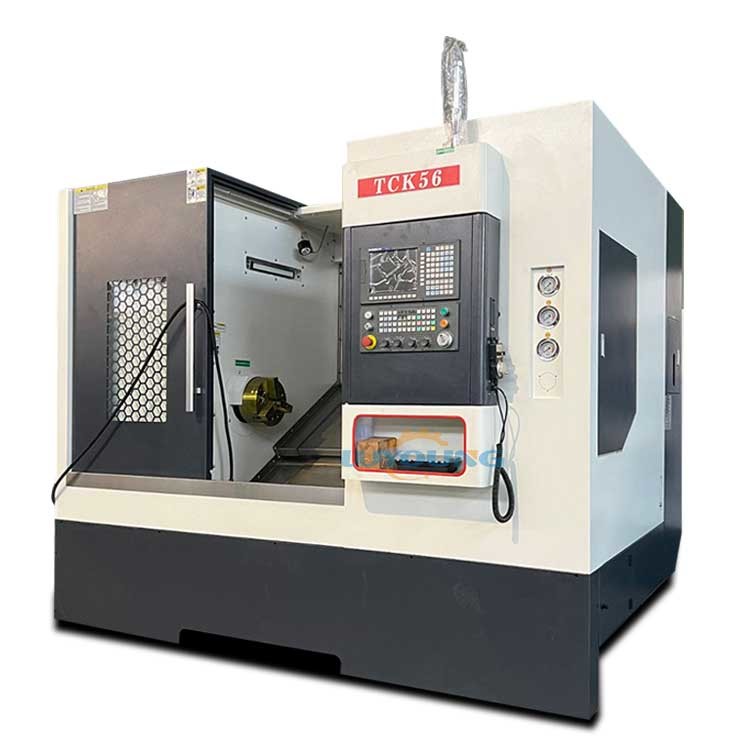

    TCK56 High Precision Metal Slant Cnc Lathe Machine 750mm1000mm 1500mm

    TCK56 China high precision metal slant cnc lathe machine 750mm1000mm 1500mm

    TCK56 High Precision Metal Slant Cnc Lathe Machine 750mm1000mm 1500mm

    Specification of TCK56 China high precision metal slant cnc lathe machine 750mm1000mm 1500mm


    ItemModelTCK56*750(with Y axis )
    Working RangeMax. swing diameter over bed(mm)Φ650
    Max. cutting diameter(mm)Φ540
    Max.cutting length(mm)540
    Machine travel
    and feed
    X axis travel(mm)280
    Z axis travel(mm)750/1000
    X/Z axis movement speed(mm/min)24000
    Handwheel(mm)0.001/0.01/0.1
    X,Z axis feed speed(mm/min)0~5000
    X,Z axis manual feed speed(mm/min)0~1260
    AccuracyX/Z axis repositioning accuracy(mm)0.005/0.006
    X/Z axis positionaI accuracy(mm)0.01/0.015
    C axis accuracy (°)0.01
    SpindleMax spindle speed (rpm)3500
    Max. spindle torque (N.m)72
    Spindle taperA2-6
    Spindle bore (mm)Φ66
    Bar through-hole(mm)Φ52
    hydraulic chuck10”
    TurretTurret typeliving turret
    Number of tool holder12
    Y axis travel(mm)100
    Y-axis positioning accuracy(mm)0.01
    repeated positioning accuracy(mm)0.008
    Tool mounting dimension(mm)25×25
    Boring tool holder mounting diameter(mm)Φ32
    Living tools speed (rpm)6000
    TailstockTailstock travel (mm)480
    Center taperMT-5#
    Main motorMain motor power(kW)11
    Main motor torque (N.m)72
    X, Z axis feed motorX/Z axis feed motor Power (kw)2.3
    X/Z axis feed motor torque (N.m)15
    Cooling systemCoolant capacity (L)200
    Motor type (1HP) (kw)0.18
    Dimensions(mm)L×W×H(mm)3400/3600/×2060×2100
    WeightMachine weight (kg)4200/4500

    Product Description

    The TCK56 China high precision metal slant cnc lathe machine 750mm1000mm 1500mm features a bed constructed with a box-shaped structure made from high-strength cast iron (HT-300). It utilizes one-piece casting technology, and high-precision machining centers complete the machining in one setup. As a result, it possesses strong overall rigidity, excellent machine accuracy retention, and high reliability.


    Bed Structure

    The bed adopts a high-rigidity 30-degree slant bed design, which facilitates easy chip removal. It is equipped with a separate coolant tank that completely prevents leaks and is easy to maintain.


    Tool Holder

    The FCK56 series multifunctional CNC lathe uses a 12-station servo hydraulic tool holder (with an optional powered turret). The tool holders can be interchanged at various positions on the turret. Tool change speed is rapid, with an adjacent tool change time of just 0.25 seconds. The tool holder's rotational repeatability is maintained at 0.003 mm.


    Spindle

    The FCK56 series multifunctional CNC lathe features a high-rigidity spindle unit structure.

    The spindle has a closed oil grease lubrication system to ensure smooth and stable operation at high speeds.

    The spindle motor is an AC servo motor with stepless speed control, providing 11 kW of power, high torque output across a wide range, and significant torque at low speeds, making it suitable for heavy cutting.

    The spindle box employs a gearless structure, significantly reducing noise and vibration.

    It uses a hydraulic chuck (optional solid center) and a high-speed oil cylinder, equipped with a foot switch for convenient and safe workpiece clamping.


    X and Z Axis Drive

    The X4010 and Z4010 axes are driven by Taiwan's Hiwin large-diameter, high-precision (C3 grade) linear guides, which are pre-loaded.

    The X and Z axes use Taiwan's Hiwin roller linear rails (P-grade RG45), which have strong load-bearing capabilities.

    A ball screw linear rail lubrication system provides forced lubrication throughout the entire process, minimizing friction and featuring stainless steel protective covers.

    Both X and Z axes are equipped with servo motors; the X-axis motor has a torque of 10 N·m, while the Z-axis motor has a torque of 15 N·m.


    Tailstock

    The machine features a standard hydraulic tailstock, with movement driven by a hydraulic cylinder (a programmable tailstock driven by a servo motor screw mechanism is available as an option).

    The tailstock guide rails are made from high-precision Taiwanese components to ensure optimal feed accuracy and rigidity.


    Hydraulic System

    The machine's hydraulic system utilizes imported components to control a variable pump system, ensuring energy efficiency.


    Lubrication System

    A centralized lubrication system provides automatic forced lubrication for the ball screws and linear rails, ensuring the machine maintains rapid movement capabilities and high positioning accuracy. This translation retains the technical details and specifications of the original text while ensuring clarity in English.
