| Brand Name : | Luyoung |
| Model Number : | TCK50 |
| Certification : | CE |
| Price : | USD17000-USD32000 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100sets |
| Delivery Time : | 45 working days |

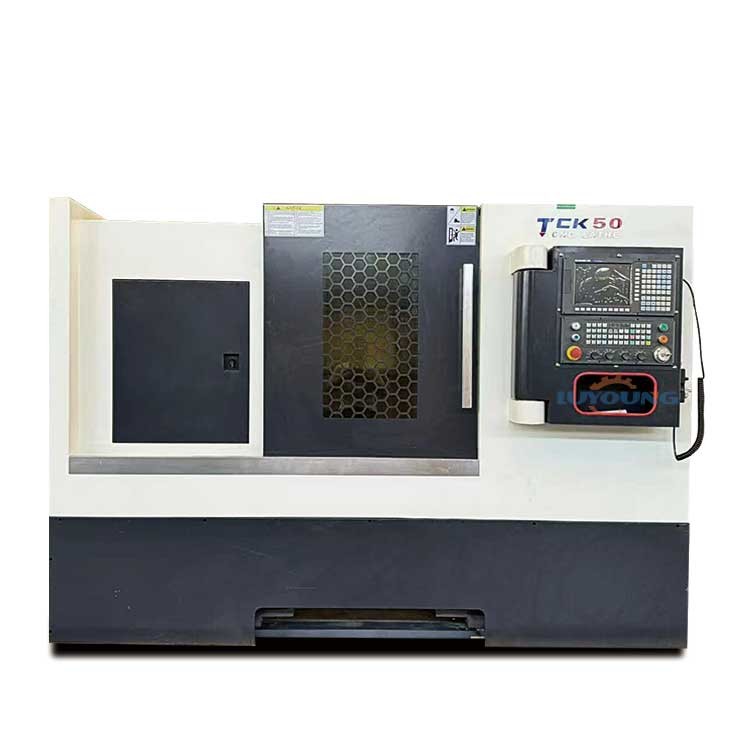

TCk50 slant bed machine hydraulic chuck and tailstock hydraulic
turret
Specifications
| Model | TCK40 | TCK50 |
| Max. swing diameter over bed(mm) | Φ450 | Φ550 |
| Max. cutting diameter(mm) | Φ120 | Φ440 |
| Max.cutting length(mm) | 335 | Φ450 |
| X axis travel(mm) | 900 | 250 |
| Z axis travel(mm) | 335 | 500 |
| X/Z axis movement speed(mm/min) | 24000 | 24000 |
| Handwheel(mm) | 0.001/0.01/0.1 | 0.001/0.01/0.1 |
| X,Z axis feed speed(mm/min) | 0~5000 | 0~5000 |
| X,Z axis manual feed speed(mm/min) | 0~1260 | 0~1260 |
| X/Z axis repositioning accuracy(mm) | 0.005/0.006 | 0.005/0.006 |
| X/Z axis positionaI accuracy(mm) | 0.01/0.015 | 0.01/0.015 |
| Max spindle speed (rpm) | 4,500 | 3500 |
| Max. spindle torque (N.m) | 35 | 48 |
| Spindle taper | A2-5(optional A2-6) | A2-6 |
| Spindle bore (mm) | Φ52 | Φ66 |
| Bar through-hole(mm) | Φ40 | Φ50 |
| hydraulic chuck | 6" (Optional8”) | 10" (Optional2”) |
| Turret type | Gang type tool holder | Hydraulic turret |
| Number of tool holder | / | 12 |
| Tool change times(s) | / | 0.25 |
| Tool mounting dimension(mm) | 20×20 | 25×25 |
| Boring tool holder mounting diameter(mm) | Φ25 | Φ32 |
| Tailstock travel (mm) | / | 480 |
| Center taper | / | MT-5# |
| Main motor power(kW) | 5.5 | 7.5 |
| Main motor torque (N.m) | 35 | 48 |
| X/Z axis feed motor Power (kw) | 1.5 | 2.3 |
| X/Z axis feed motor torque (N.m) | 6 | 15 |
| Coolant capacity (L) | 200 | 200 |
| Motor type (1HP) (kw) | 0.125 | 0.18 |
| L×W×H(mm) | 2100*1450*1850 | 2697*1795*1860 |
| Machine weight (kg) | 1600 | 3600 |
|
|
