| Brand Name : | luyoung |
| Model Number : | vmc1370 |
| Certification : | CE |
| Price : | $29000-$38000 |
| Payment Terms : | T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability : | 10/SET |
| Delivery Time : | 30days |

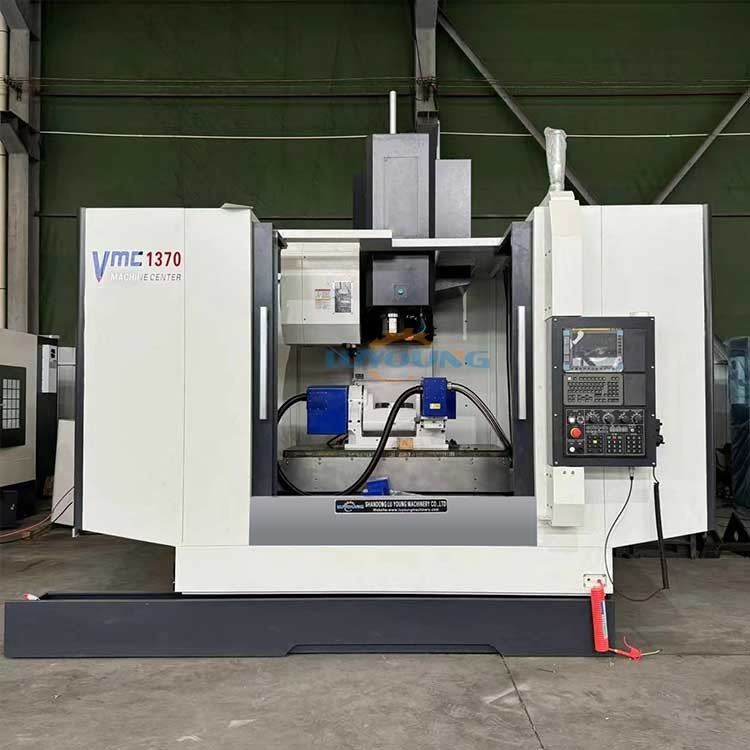

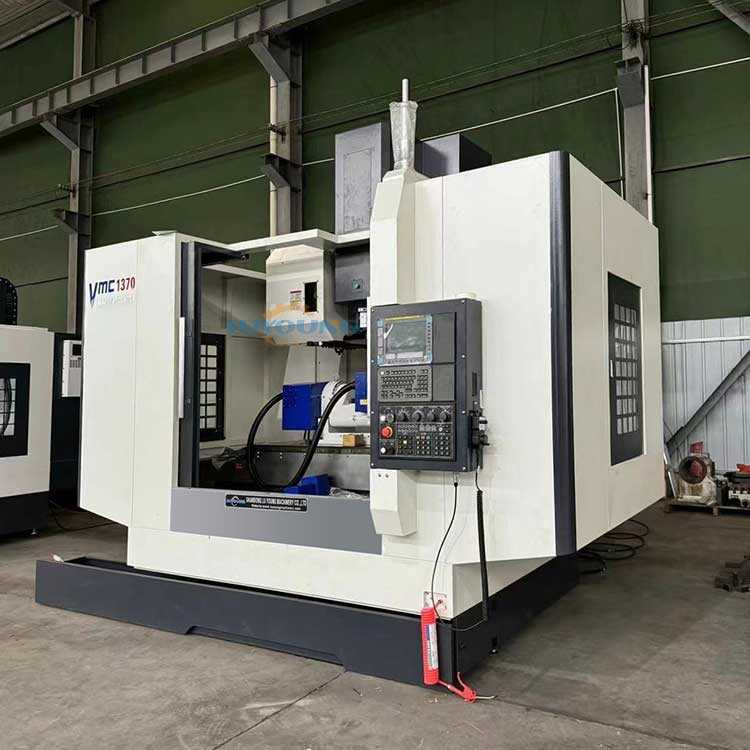

CNC milling machine vmc1370 3-phase Powered CNC Milling Machine 3/4/5 axis vertical machine center
The machine requires a power supply of 380V and 3-phase electricity to operate efficiently. The powerful Z motor delivers a torque of 7.7N.m, making it capable of handling heavy-duty cutting tasks with ease.
Available in a range of colors to suit your preferences and requirements, the CNC milling machine is a versatile and reliable piece of equipment that can be used in a variety of manufacturing industries.
Whether you are working in the aerospace, automotive, or medical industry, this CNC milling machine is the perfect solution for your machining needs. It is capable of producing high-quality components with exceptional precision and accuracy, making it an ideal choice for both prototyping and production runs.
The CNC milling machine is easy to operate and comes with a user-friendly interface that allows you to program and control the machine with ease. It also features a range of advanced features and functionalities that make it a highly efficient and productive machine.
The machine is available for shipping from either the Qingdao or Shanghai port, ensuring fast and reliable delivery to your location.
Specification:
| Item | VMC850 | VMC1160 | VMC1270 | VMC1370 | ||
| Size of worktable(length×width)mm | 1000×500 | 1100×600mm | 1200×700mm | 1300×700mm | ||
| T slot (mm) | 5-18x100 | 5-18×100mm | 5-18x115 | 5-22x140 | ||
| Max loading weight on worktable | 600kg | 650kg | 1000kg | 1400 | ||
| X-Axis travel(mm) | 800 | 1000 | 1200 | 1300 | ||
| Y-Axis travel(mm) | 500 | 600 | 700 | 700 | ||
| Z-Axis travel(mm) | 500 | 600 | 700 | 700 | ||
| Distance between spindle nose and table | 105-605mm | 100-700mm | 130-830mm | 160-860mm | ||
| Distance between spindle center and column(mm) | 550 | 667 | 767 | 775 | ||
| Spindle taper | BT40 | BT40/50 | BT50 | |||
| Max. spindle speed( rpm) | 8000/10000/12000 | |||||
| Spindle motor power(Kw) | 7.5/11kw | 11/15kw | 11/15kw | 15/18.5kw | ||
| Rapid feeding speed: X,Y,Z axis m/min | 16/16/16 (24/24//24 liner guidway) | |||||
| Fast cutting speed m /min | 10m/min | |||||
| Positional accuracy | ±0.005 mm | ±0.005 mm | ±0.005 mm | ±0.0075 mm | ||
| Repeat positional accuracy | ±0.003 mm | ±0.003 mm | ±0.003 mm | ±0.005 mm | ||
| Auto Tool changer type | 16 tools head type tool changer(optional 24 arm type auto tool changer) | |||||
| Max. tool length | 300mm | |||||
| Max. Tool diameter | Φ80(adjacent tool)/φ150(not adjacent tool) | |||||
| Max.tool weight | 8kg | |||||
| Tool changing time(tool-to-tool) | 7sec | |||||
| Air pressure | 0.6 Mpa | |||||
| Machine weight | 5500KG | 7500KG | 9000KG | 10000KG | ||
| Overall sizse(mm) | 2600*2300*2300 | 3340*2800*2700 | 3800*3000*2650 | 3870*3165*2920 | ||
This CNC milling machine is suitable for a wide range of applications, including precision machining, mold making, and metalworking. It is ideal for use in manufacturing plants, tool and die shops, and other industrial settings where precision is of the utmost importance.
The VMC1370 CNC milling machine offers a number of benefits over traditional milling machines. Its computer-controlled operation allows for greater precision and accuracy, which can result in higher quality finished products. Additionally, the VMC1370 is faster and more efficient than traditional milling machines, allowing for increased productivity and faster turnaround times on projects.
Whether you are a small business owner or a large industrial manufacturer, the VMC1370 CNC milling machine is an excellent investment. Its high precision and efficiency make it a valuable tool for any workshop or manufacturing plant. Additionally, its customizable color options allow you to choose a machine that fits your specific needs and preferences.
In conclusion, if you are looking for a reliable and efficient CNC milling machine, the Luyoung VMC1370 is an excellent choice. Its 3 axis milling capabilities, 4 axis vertical machine design, and customizable color options make it a versatile tool for any workshop or industrial setting.
|
|
