| Brand Name : | luyoung |
| Model Number : | tck56 |
| Price : | $35,000.00/sets >=1 sets |

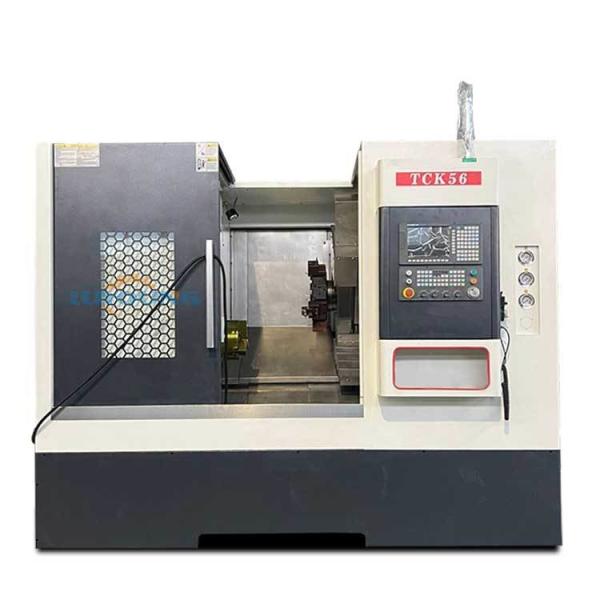

Metal Lathe Machine tck56 750mm belt drive metal turning Lathes hydraulic servo turret. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor. It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts.
Specification of Metal Lathe Machine tck56 750mm belt drive metal turning Lathes hydraulic servo turret
Specifications | Units | TCK56x750 |
Max.swing over bed | mm | 560 |
Max. Swing over cross slide | mm | ---- |
Max. Processing length | mm | 750 |
Cross slide length | mm | 1000 |
Lathe bed straucture | 45° integral inclined lathe | |
Distance between cross slide and spindle axis | mm | ---- |
Spindle nose | A2-6 | |
Spindle (C axis )speed range | R/min | 50-3500 |
Spindle bore | mm | 66mm |
Bar capacity | mm | 75mm |
Spindle (C Axis)motor | kw | 11 |
Milling head | 12 station driven turret | |
Milling head power | kw | 2.3 |
Milling head speed | R/min | 6000 |
X axis travel | mm | 340 |
Z axis trave | mm | 1000 |
Y axis trave | mm | 100 |
Turret type | 12 station driven turret | |
X rapid traverse | Mm/min | 24000 |
Z rapid traverse | Mm/min | 24000 |
Y rapid traverse | Mm/min | 15000 |
X/Z axis positioning accuracy | mm | 0.006 |
X/Z axis repositioning accuracy | mm | 0.015 |
Spindle (C axis)dividing positioning accuracy | mm | 0.02’’(70 arc-seond) |
Spindle (C axis)dividing repositioning accuracy | mm | 0.006’’(20 arc-seond) |
Machine dimension(LxWxH) | mm | 3400x2060x2100 |
Net weight | Kg | 4200/4500 |
Other optional configuration of turret
1.Processing complex and high precision workpiece. Bed head box optimization design, suitable for discs, shaft parts
of the turning process, you can line, arc, metric thread, long
thread processing, can be applied to the complex shape of the
complex and high precision disk type, shaft parts Processing.
2.High hardness, good rigidity, high audio quenching, machine guide rails and saddle rails are
using special materials, hard rail, high frequency quenching, super
hard wear and tear, durable, good processing accuracy
3.Automatic lubrication, the lubrication point of the use of forced automatic lubrication
device for quantitative quantitative lubrication of the screw and
guide rail, when there is an abnormal state or lack of fuel, the
automatic warning signal.
4. High precision, low noise. Spindle high precision double ball bearing support, low noise,
high precision, good stability
5.Tailstock self-protection function, tailstock with fast cam clamping device, high efficiency.
Tailstock sleeve to prevent the drill bit rotation device, to avoid
the malfunction caused by the drill bit rotation and damage the
tailstock sleeve hole taper, the effective protection of the
tailstock parts.
6.Easy to operate, especially for complex parts or high-precision high-volume parts
of the processing, but also the first choice of numerical control
teaching
Features of cnc turning lathe machine price in india
CK0640 mini cnc lathe CK6432 small cnc lathe CK6130 small cnc lathe machine
CK6132 small cnc lathe CK6136 small cnc lathe CK6140 cnc lathe machine
Why choose our 3 in 1 lathe drilling and milling machine metal multifunctional TCK56 slant bed machine Y axis vdi turret machine?
1.Strong strength,The company has 20 years of production experience, rich product
range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality,
strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
20 years' production experience
The main product of Shandong Luyoung Machinery Co.,Ltd is CNC lathe
machine, CNC milling machine, CNC machine centers,CNC swiss type
automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
Annual sales:
Who choose Lu Young?
Feedback from customer:
Strong packing will protect the goods from any possible damage during transit
Packaing information of Metal Lathe Machine tck56 750mm belt drive metal turning Lathes hydraulic servo turret
| Packaging material | Non-fumigation plywood crate |
| Base plate | Steel |
| packaging feature | 1.Non-fumigation packaging, we use seaworthy plywood. 2. Steel base plate, it is stronger 3-5 times than normal plywood base plate. 3.Water-proof and damp proof, water resistant film wraped all the machine. 4.Fully sheathed case,prevention of collision and keep the goods intact. |
FAQ:
1.How to get the quotation of mechanical lathe Servo Automatic Drilling and Tapping Machine Universal Electric tck630 milling machine?
| Tell me the model ,quantity and your requirements, then we will give you our best price to you. |
2.If we don’t know the model of the lathe,how to choose the model?
| Send the drawing of the workpiece ,then our technicist will recommend the exact model to you. |
3.How about the MOQ(Minimum Order Quantity)?
| 1 set |
4.Can we place an order by TRADE ASSURANCE?
| Of course, all of our orders can be placed by this way. Please rest assured your money. |
5.How long about your guarantee period?
| 12 months. If there are accessories damaged during the warranty period,we will we will replace it for free. |
