Characters: Manual chuck, Manual tailstock, 4 station electrical tool holder

Pls notice the distance between two centers you can choose 750/1000/1500mm

Tool holder: 4/6/8 station electrical tool holder

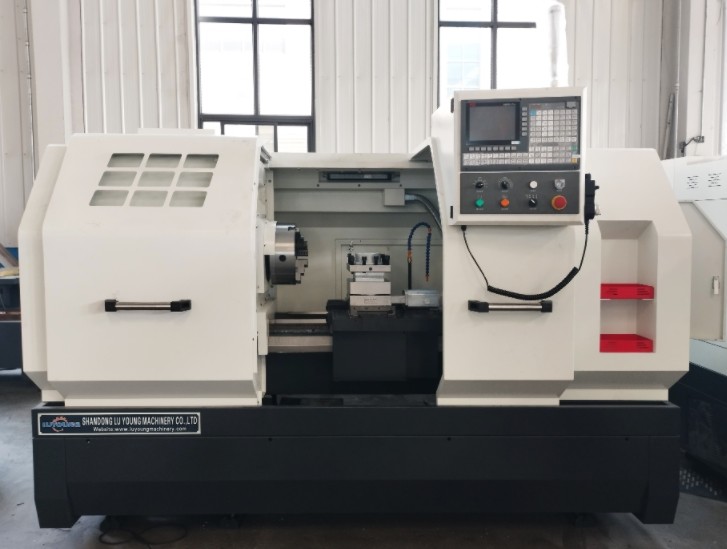

The CK6150X1000 CNC lathe has strong machining capabilities characterized by the following key features:

Machining Capacity

• Maximum Swing Diameter Over Bed: 500 mm, allowing the machining of medium to large cylindrical parts.

• Maximum Swing Diameter Over Cross Slide: Approximately 250-280 mm, suitable for detailed and precise turning on the slide.

• Distance Between Centers: 1000 mm (with options for 750, 1500, and 2000 mm), enabling machining of longer workpieces.

• Spindle Bore Diameter: 82 mm, allowing through-hole bar workpieces up to this diameter.

• Maximum Spindle Speed: Up to 1800 rpm, supporting a variety of machining speeds for different materials and cutting conditions.

Types of Machining

• Capable of automatically completing the turning of inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end faces, and threading (single and multi-start threads in metric, inch, and other forms).

• Suitable for machining shafts, bushings, and other rotationally symmetric parts requiring high precision and surface finish.

• Rapid traverse rates of 6 m/min (X-axis) and 8 m/min (Z-axis) for efficient positioning and cycle times.

• Motor power options typically 7.5 kW, upgradeable to 11 kW for more demanding machining tasks.

• Full enclosure design for operator safety and clean operation.

Shandong Lu Young Machinery Co, Ltd. is established in July 1996.We are located in

shandong provice.We are one of professional cnc lathe machine, cnc milling machine, band

sawing machine and swiss lathe machine manufacturer in china.We founded our fast lathe

machine factory in 1996 in tengzhou City to produce center lathe and univesal milling machine

for over 20 years development,we build three factories.One is for cnc lathe production one for

cnc milling production.
We imported advanced production technology and R&D team from Korean in 2001 and build

our third factory for swiss lathe machine production.We own about 500 wokers and 40 engineers,

more than 5000 square meter .
