China factory price flat bed sm205 swiss type cnc lathe machine with fanuc controller system

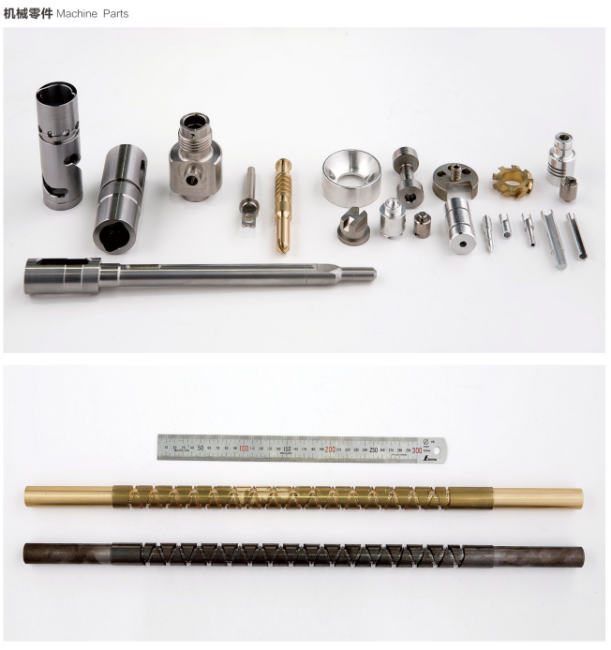

This machine tool is suitable for processing various high-precision, multi-batch, and complex-shaped shafts used in aviation, aerospace, automobiles, motorcycles, communications, refrigeration, optics, home appliances, electronics, micro-electronics, clocks, office equipment, etc. Precision compound machining of similar parts.
Compared with CNC lathes, there is a qualitative leap in processing efficiency and machining accuracy. Due to the use of biaxial arrangement of tools, the processing cycle time is greatly reduced. Function, thread cutting effective axis movement overlapping function, direct spindle indexing function in secondary machining, shortening the idle time. The cutting tool is always processed at the clamping part of the spindle and the workpiece, which ensures that the processing accuracy remains unchanged.
Application of our China factory price flat bed sm205 swiss type cnc lathe machine with fanuc controller system:
1. High rigidity: The whole machine is slightly heavier, which is reflected in the wall thickness of the body castings, the span of the guide rail, etc. The rigidity and expandability of the machine tool are strong, and it is better than other machine tools for heavy cutting. It has obvious advantages in processing steel, alloy steel, stainless steel, etc. Advantage.
2. High stability: The widened guide rail and span structure, the braking and locking device after the main/sub-axis indexing improve the stability of workpiece processing.
3. Slitting automatic lathe SM205 is suitable for processing all kinds of high-precision, multi-batch, shape and Precision compound machining of complex shaft parts.
This series of machine tools can be equipped with an automatic feeding device to realize fully automated production of a single machine tool, reducing labor costs and product defect rates.
Specification of China factory price flat bed sm205 swiss type cnc lathe machine with fanuc controller system:
| Description | Unit | Specifications | |||
| Processing capacity | Max machining diameter | mm | ￠20 | ||
| Stroke | mm | 250 | |||
| Max. Turning Diameter | mm | ￠20 | |||
| Main Spindle RPM | rpm | 10000 | |||
| Sub Spindle RPM | rpm | 8000 | |||
| Cross Driven Tools | rpm | 5000 | |||
| Main/Sub Spindle CS axis indexing minimum unit | 度 | 1/1000(0.001) | |||
| Rapid Traverse Rate | X1 axis | m/min | 24 | ||
| Y/Z1/X2/Z2 axis | m/min | 32 | |||
| Number of tools | O.D Tools | ea | 6 | ||
| Front Work Tools | ea | 5 | |||
| Cross Driven Tools | ea | 4 | |||
| Back Work Tools | ea | 4(fixed) | |||
| O.D Tools specification | mm | □12×12 | |||
| Front Work Tools diameter | mm | (Standard)￠25 | |||
| Power Tool Chuck Specifications | mm | ER16 | |||
| Motors | Spindle motor | kw | 2.2/3.7 | ||
| Sub Spindle motor | kw | 1.5/2.2 | |||
| Servo axis motor | kw | 0.5 | |||
| Cross Driven Tools motor | kw | 0.75 | |||
| Lubrication pump motor | w | 100 | |||
| Coolant motor | kw | 0.4(pressure 0.5bar) | |||
| Other | Coolant tank capacity | L | 180 | ||
| Lubrication tank capacity | L | 1.8 | |||
| Height from floor tospindle center | mm | 1000 | |||
| Floor space | (L) | mm | 2610 | ||
| (W) | mm | 1530 | |||
| (H) | mm | 1674 | |||
| Mass of machine | kg | 3600 | |||
| CNC control unit | set | Fanuc oi TF PLUS | |||
Standard Function:
| NO | Name | Number |
1 | Background Edit | 1 set |
2 | Absolute / incremental editor | 1 set |
3 | X-axis diameter / radius input | 1 set |
4 | Constant surface speed control | 1 set |
5 | Direct input of tool offset value | 1 set |
6 | Single fixed cycle | 1 set |
7 | Compound Fixed Cycle | 1 set |
8 | Tip arc compensation | 1 set |
9 | Metric / inch conversion | 1 set |
10 | Graphic display | 1 set |
11 | USB card socket | 1 set |
12 | Processing time / quantity that represents the capabilities | 1 set |
13 | Main/Sub Spindle Cs-axis control indexing locking device locking device locking device locking locking device | 1 set |
14 | Hand retrace function | 1 set |
15 | Collet chuck means | 1 set |
16 | Pneumatic clamping mechanism | 1 set |
17 | Centralized lubrication system | 1 set |
18 | working lamp | 1 set |
19 | Three-color warning lights | 1 set |
20 | Conveyor Parts | 1 set |
21 | Part receiving device | 1 set |
22 | Security locks | 1 set |
23 | Transformer | 1 set |
24 | Tools | 1 set |
25 | Sub spindle ejection apparatus | 1 set |
26 | Ottomans to iron | 1 set |
27 | Synchronous rotation guide means | 1 set |
28 | 4 axis Cross Driven Tools | 1 set |
29 | Spindle, sub spindle in rigid tapping | 1 set |
Main accessories brand of China factory price flat bed sm205 swiss type cnc lathe machine with fanuc controller system
| Name | Brand | Remarks | |
| Screw | THK | Japan | Precision grinding P4 level |
| Guide | THK | Japan | Precise C3 level |
| lead screw bearing | NSK | Japan | Self centering P4 level |
| Spindle bearing | NSK | Japan | High speed angular contact bearing P4 level |
| Power head berring | NSK | Japan | Angular contact bearing P4 level |
| Synchronous axis precision spline shaft | THK | Japan | Advanced precision |
| Control system | FANUC | Japan | |
| motorized | FANUC | Japan | |
| Servo motor | FANUC | Japan | |
Application of China factory price flat bed sm205 swiss type cnc lathe machine with fanuc controller system :
1. High rigidity: The whole machine is slightly heavier, which is reflected in the wall thickness of the body castings, the span of the guide rail, etc. The rigidity and expandability of the machine tool are strong, and it is better than other machine tools for heavy cutting. It has obvious advantages in processing steel, alloy steel, stainless steel, etc. Advantage.
2. High stability: The widened guide rail and span structure, the braking and locking device after the main/sub-axis indexing improve the stability of workpiece processing.
3. Slitting automatic lathe SM205 is suitable for processing all kinds of high-precision, multi-batch, shape and Precision compound machining of complex shaft parts.
This series of machine tools can be equipped with an automatic feeding device to realize fully automated production of a single machine tool, reducing labor costs and product defect rates.
This machine tool is suitable for processing various high-precision, multi-batch, and complex-shaped shafts used in aviation, aerospace, automobiles, motorcycles, communications, refrigeration, optics, home appliances, electronics, micro-electronics, clocks, office equipment, etc. Precision compound machining of similar parts.
Compared with CNC lathes, there is a qualitative leap in processing efficiency and machining accuracy. Due to the use of biaxial arrangement of tools, the processing cycle time is greatly reduced. Function, thread cutting effective axis movement overlapping function, direct spindle indexing function in secondary machining, shortening the idle time. The cutting tool is always processed at the clamping part of the spindle and the workpiece, which ensures that the processing accuracy remains unchanged.
|
|
