| Brand Name : | Luyoung |
| Model Number : | TCK40 |
| Certification : | CE |
| Payment Terms : | USD12000-USD30000, L/C, T/T |
| Supply Ability : | 100sets |
| Delivery Time : | 45 working days |

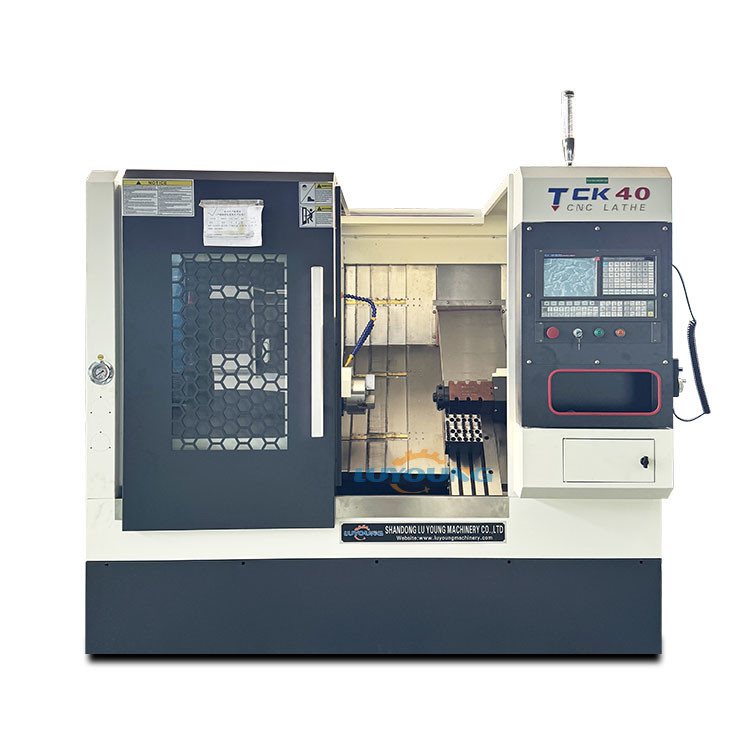

: The two guide rails of the inclined bed CNC lathe intersect with the ground plane to form an inclined surface, with angles of 30°, 45°, 60°, and 75°4. The bed of the inclined bed CNC lathe is a right-angled triangle.
: The cross-sectional area of the inclined bed is larger than that of a flat bed with the same specifications, providing greater resistance to bending and torsion.
: Inclined bed machines make effective use of space and greatly reduce the floor space occupied by the machine.
: The inclined guide rails facilitate the concentration of chips on the chip conveyor, which is convenient for automatic chip removal.
: The spindle unit speed can reach 4500 rpm.
: The machine uses Taiwan guide rails for fast movement and high precision.
: The servo main motor has a large torque and fast acceleration.
: The inclined bed CNC lathe can have a row cutter or a turret to meet different processing needs4. It can be equipped with a row cutter structure, increasing the transverse stroke, improving processing efficiency, and can be equipped with multiple tool rests.
: Simple structure, easy to modify and process, easy to locate and install. The accuracy of the gang-type tool rest modification method is determined by the machine's own accuracy and is suitable for the high precision and high efficiency operation requirements of modern production and manufacturing
|
|
