| Brand Name : | Luyoung |
| Model Number : | ck6150 |
| Certification : | CE |
| Price : | 7500-20000 |
| Payment Terms : | T/T, L/C, Western Union |
| Supply Ability : | 100sets |
| Delivery Time : | 45 working days |

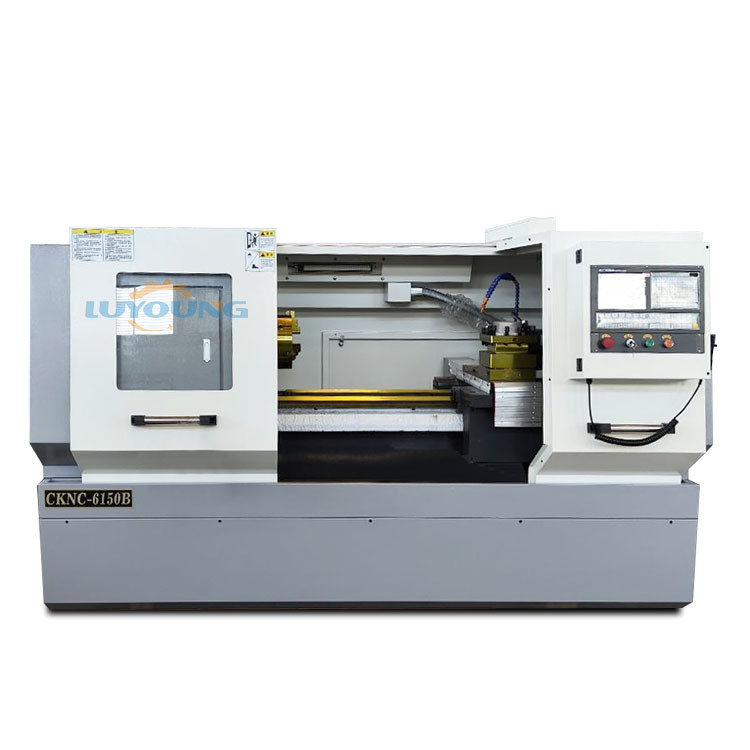

Cnc lathe machine CK6150B 750/1000/1200mm distance between two centers flat bed lathes
A flat-bed CNC lathe is a common type of CNC machine tool, characterized by the following features:
Stable Structure: The horizontal bed design of the flat-bed lathe provides excellent rigidity and stability, suitable for heavy cutting and precision machining.
High Accuracy: With high flatness and straightness of the bed, this type of CNC lathe can achieve high machining accuracy and surface finish.
High Automation: The machine is controlled by a CNC system, automatically executing complex machining programs, saving labor, and increasing production efficiency.
Powerful Spindle: It typically comes with a high-power spindle capable of handling various hardness materials and supporting high-speed cutting.
Multi-Function Tooling: Equipped with multi-position tool holders, it can perform various cutting operations, such as external and internal turning, face machining, and threading.
User-Friendly Operation: The CNC system features a graphical user interface, making programming and controlling the machine easy for operators.
High Expandability: It can be easily upgraded with additional attachments and functional modules, like automatic loading and unloading systems, to accommodate diverse production requirements.
Versatility: Suitable for both batch production and small batch production, especially for machining complex-shaped and high-precision components in industries like automotive, aerospace, precision machinery, and medical devices.
These characteristics make flat-bed CNC lathes widely employed in various sectors where precision and versatility are essential.
Specifications:
| Item | CK6150A/B |
| Max. swing dia. over bed | 500mm |
| Max. swing dia. over cross slide | 280mm |
| Processing length | 750mm/1000mm/1500mm |
| Width of the bed | 400mm |
| Dia. of spindle | 82mm |
| Spindle taper | 1:20/90 |
| spindle nose | Type of spindle head D-8 |
| Spindle speed | 15-1500rpm |
| Spindle speed step | step-less |
| chuck size | 250mm |
| Tool holder | 4 station |
| Tool bar section | 25X25mm |
| Main motor power | 7.5KW |
| X/Z axis position accuracy | 0.02/0.025mm |
| X/Z axis repeatability | 0.01/0.012mm |
| X/Z axis travel | 360/750mm/1000mm/1500mm |
| X/Z axis fast feeding speed | 8/10 M/MIN |
| Tailstock sleeve travel | 150mm |
| Tailstock taper | MT5 |
| Dimension | 2410/2660/3160*1560*1730mm |
| weight | 2800/3200/3500kg |
Pls notice the distance between two centers you can choose 750/1000/1500mm
|
|
