| Brand Name : | Luyoung |
| Model Number : | FCK46DY |
| Certification : | CE |
| Price : | USD12000-USD40000 |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100sets |
| Delivery Time : | 45 working days |

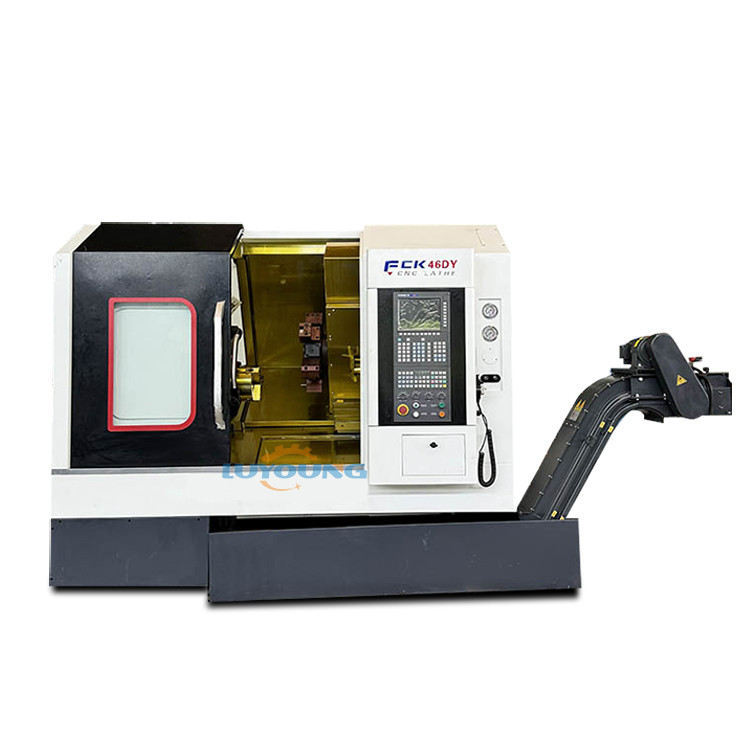

FCK46DY slant bed machine high accuracy hydraulic chuck
| Model | TCK40 | TCK46DY |
| Max. swing diameter over bed(mm) | Φ450 | Φ550 |
| Max. cutting diameter(mm) | Φ120 | Φ440 |
| Max.cutting length(mm) | 335 | Φ450 |
| X axis travel(mm) | 900 | 250 |
| Z axis travel(mm) | 335 | 500 |
| X/Z axis movement speed(mm/min) | 24000 | 24000 |
| Handwheel(mm) | 0.001/0.01/0.1 | 0.001/0.01/0.1 |
| X,Z axis feed speed(mm/min) | 0~5000 | 0~5000 |
| X,Z axis manual feed speed(mm/min) | 0~1260 | 0~1260 |
| X/Z axis repositioning accuracy(mm) | 0.005/0.006 | 0.005/0.006 |
| X/Z axis positionaI accuracy(mm) | 0.01/0.015 | 0.01/0.015 |
| Max spindle speed (rpm) | 4,500 | 3500 |
| Max. spindle torque (N.m) | 35 | 48 |
| Spindle taper | A2-5(optional A2-6) | A2-6 |
| Spindle bore (mm) | Φ52 | Φ66 |
| Bar through-hole(mm) | Φ40 | Φ50 |
| hydraulic chuck | 6" (Optional8”) | 10" (Optional2”) |
| Turret type | Gang type tool holder | Hydraulic turret |
| Number of tool holder | / | 12 |
| Tool change times(s) | / | 0.25 |
| Tool mounting dimension(mm) | 20×20 | 25×25 |
| Boring tool holder mounting diameter(mm) | Φ25 | Φ32 |
| Tailstock travel (mm) | / | 480 |
| Center taper | / | MT-5# |
| Main motor power(kW) | 5.5 | 7.5 |
| Main motor torque (N.m) | 35 | 48 |
| X/Z axis feed motor Power (kw) | 1.5 | 2.3 |
| X/Z axis feed motor torque (N.m) | 6 | 15 |
| Coolant capacity (L) | 200 | 200 |
| Motor type (1HP) (kw) | 0.125 | 0.18 |
| L×W×H(mm) | 2100*1450*1850 | 2697*1795*1860 |
| Machine weight (kg) | 1600 | 3600 |
The FCK46 is a numerically controlled lathe with a slanted bed frame. The frame is angled at 45° to allow operators to easily reach parts and ensure that chips fall away freely. The machine's full enclosure keeps chips and coolant contained, and its automatic lubrication system provides properly metered lubrication to the rails and ball screws.
|
|
